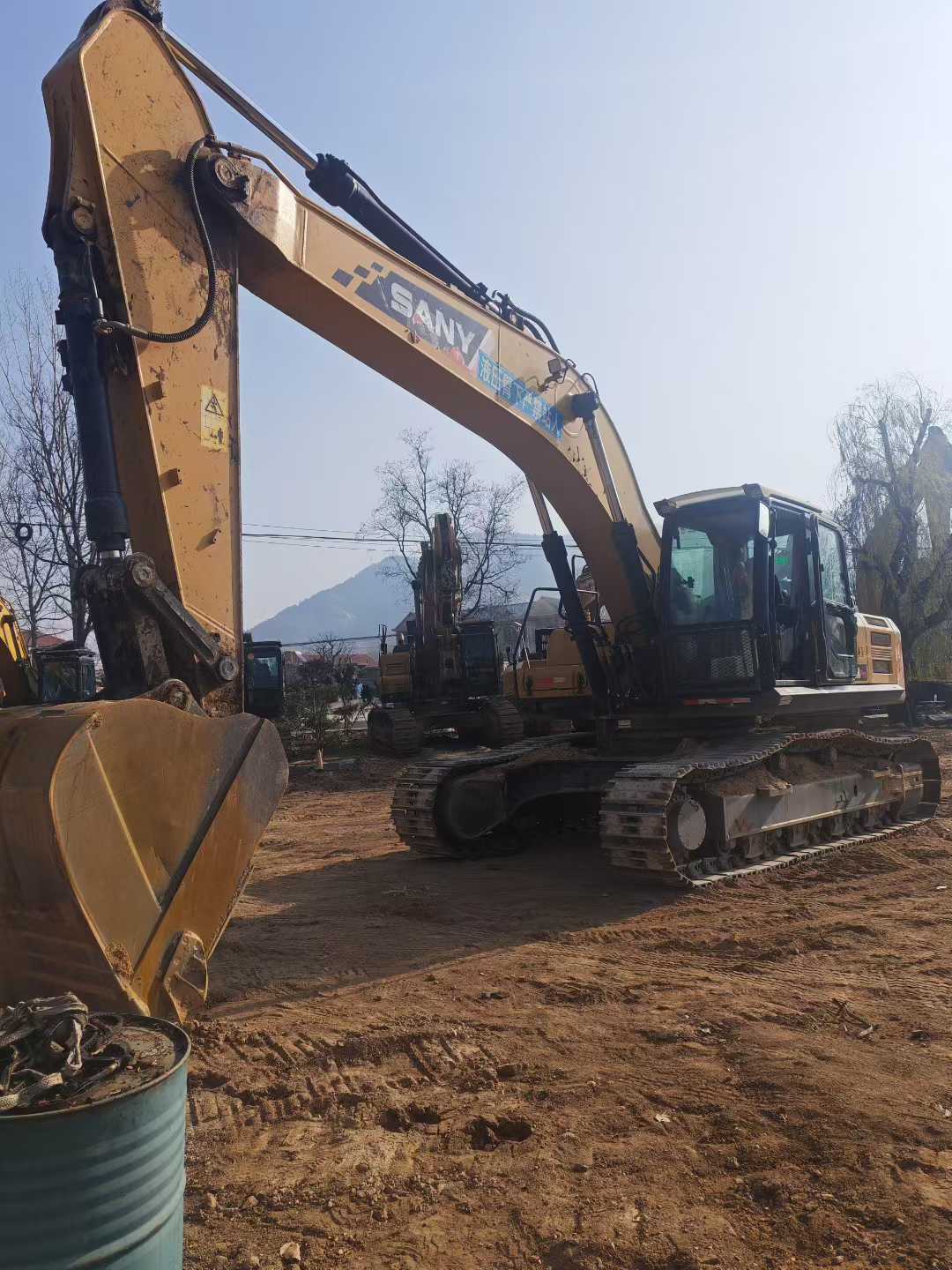

2020 Sany SY335H SIC











| Specifications | Value |
|---|---|
| No. | 964726 |
| Tonnage (tons) | 33 |
| Working weight (kg) | 32500 |
| Bucket capacity (m³) | 1.85 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

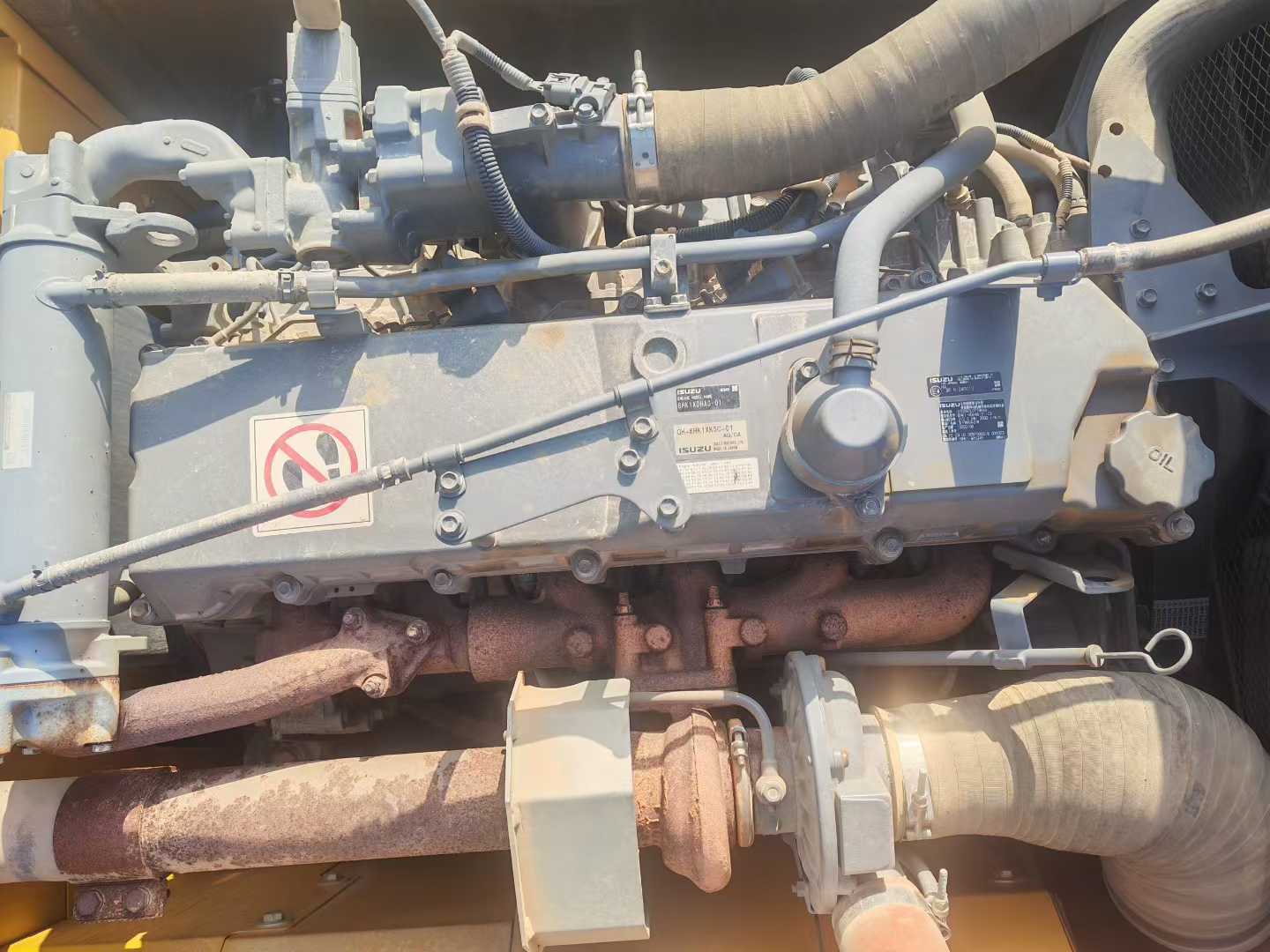

| Engine type | Isuzu 6HK1 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 60.3 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 204 |
| Rod digging force (kN) | 153 |
| Travel speed (km/h) | 5.4/3.2 |
| Fuel Tank (L) | 530 |
| Hydraulic Tank (L) | 420 |
| Engine Oil changes (L) | 35 |
| Total transport length (mm) | 10667 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3470 |
| Full cab height (mm) | 3280 |
| Minimum turning radius of front working device (mm) | 4000 |
| Back end turning radius (mm) | 3315 |
| Onboard width (mm) | 3175 |

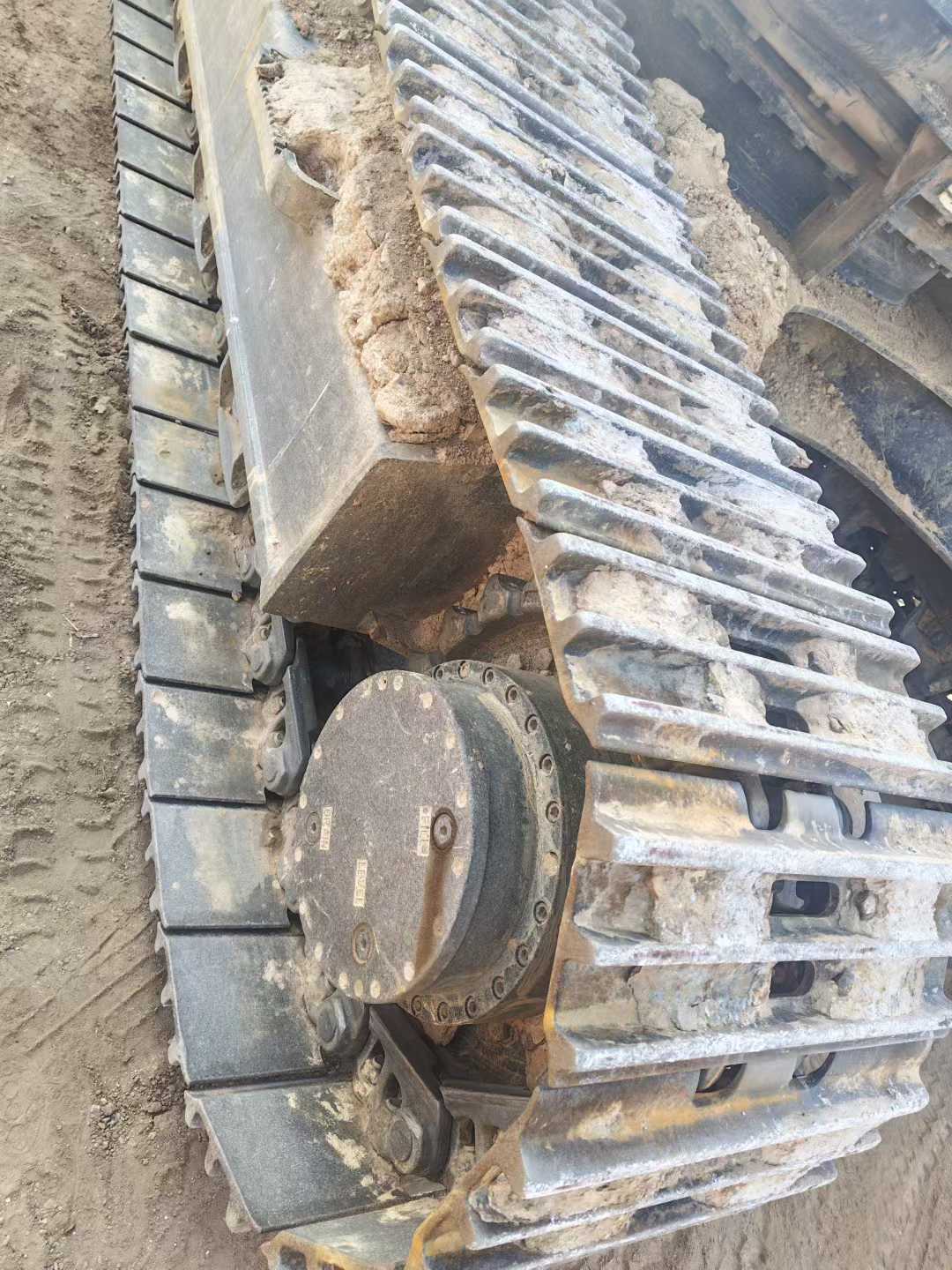

| Total track length (mm) | 5040 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4134 |
| Maximum height at minimum turning radius (mm) | 8405 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10870 |
| Maximum digging depth (mm) | 6815 |
| Maximum excavation height (mm) | 10497 |
| Maximum unloading height (mm) | 7359 |
Description

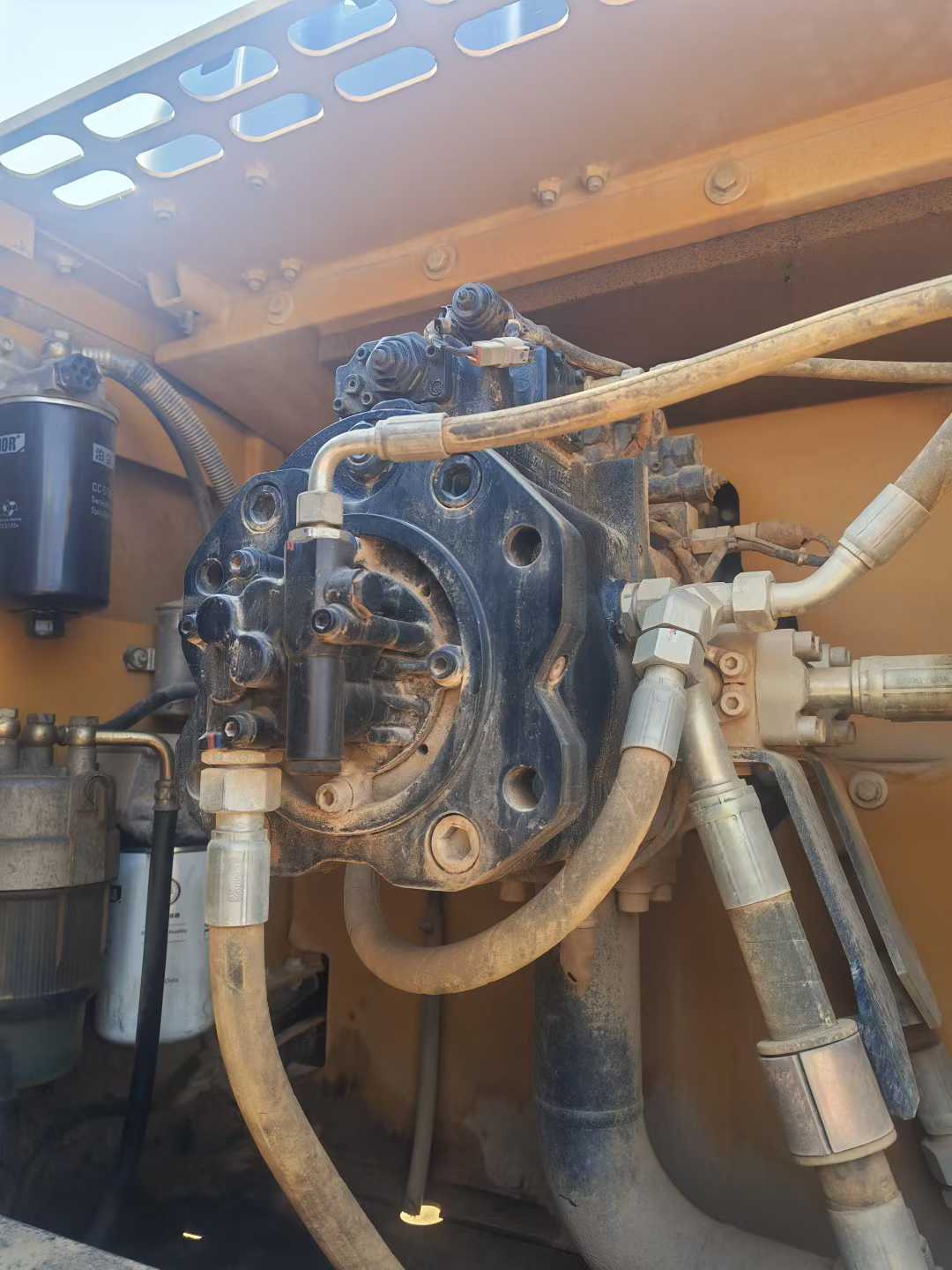

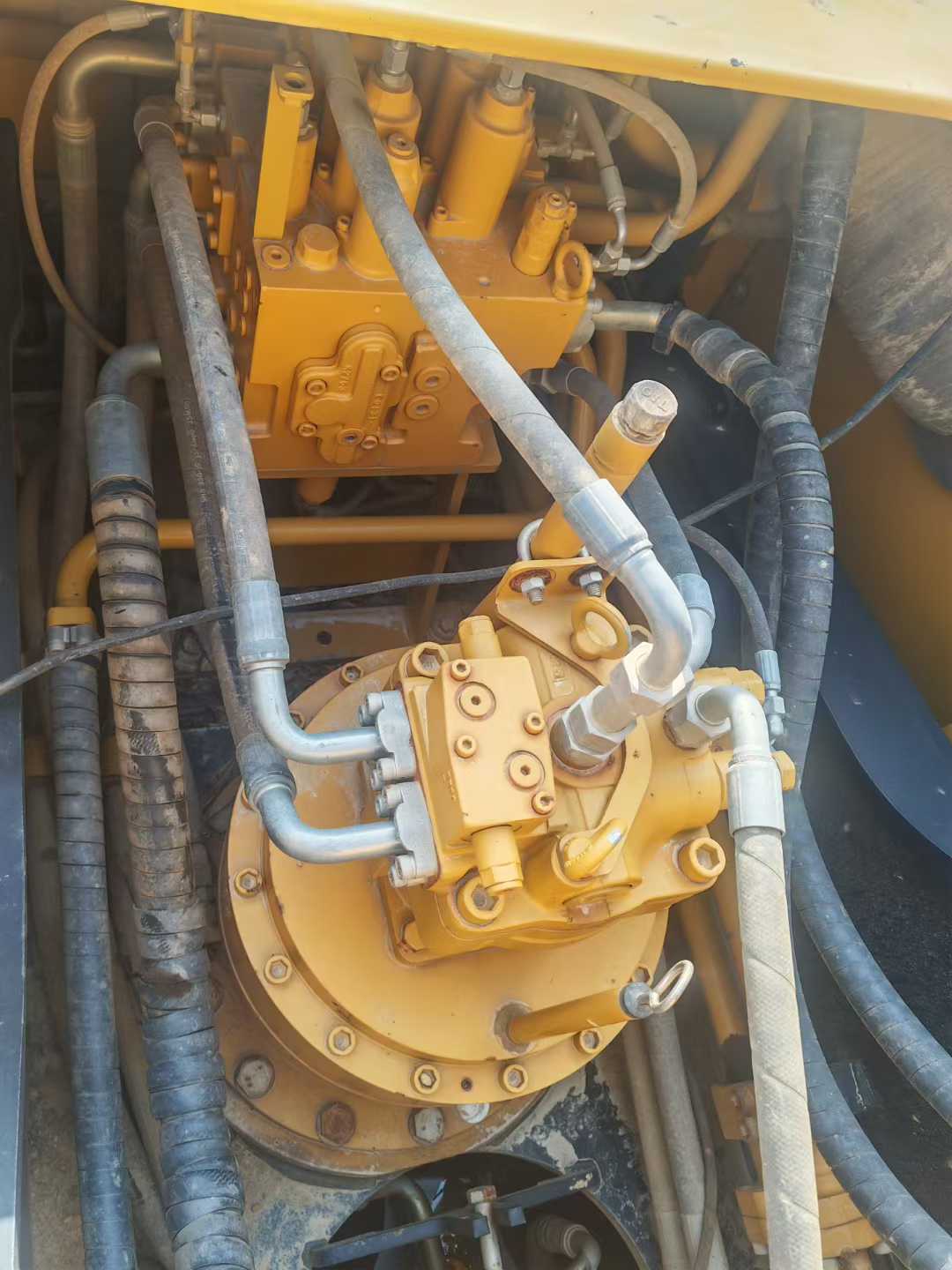

【 Premium Recommendation 】 20-year-old Sany 335 pure earthmoving machine, actual dial 5,000 hours This 2020 Sany SY335 excavator is a highly efficient construction tool specially designed for earthwork projects. After meticulous maintenance, the cumulative working time is only 5,000 hours, which is in the best condition of the mechanical life cycle. It has an extremely high cost performance and a long remaining service life. In terms of power, this device is equipped with an original imported Cummins engine, which not only has strong power and quick response, but also has high fuel efficiency, effectively reducing operating costs. Its advanced electronic control system ensures stable performance under various working conditions, and it can handle both urban infrastructure construction and mining operations with ease. The hydraulic system adopts a high-performance pump and valve combination independently developed by Sany, featuring excellent controllability and stability. The high-flow main pump, in combination with multi-way valves, makes the entire machine operate more smoothly and freely, especially performing outstandingly in complex operations such as excavation and loading. In addition, the intelligent energy-saving mode can a
Overview
No.964726
Brand Name:
SanyModel Number:
SY335H SICYear:
2020
Location:
Shandong China
